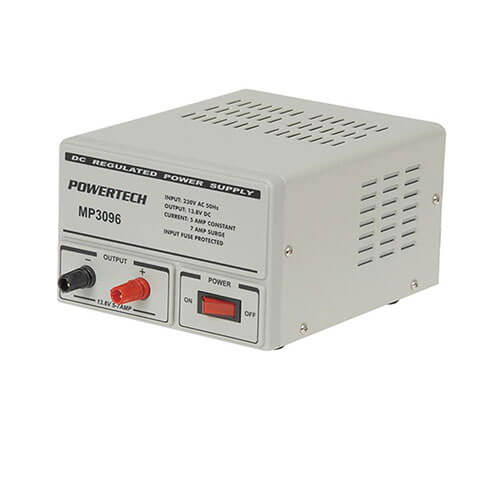

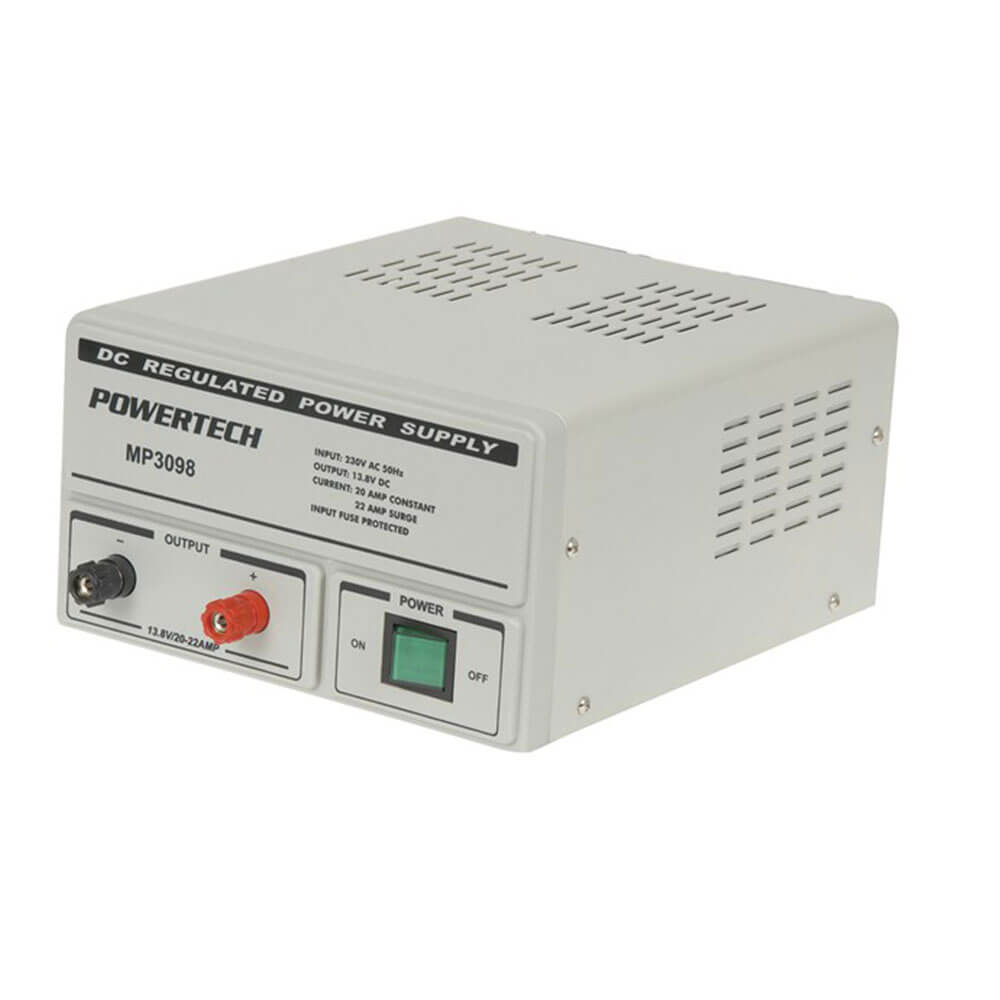

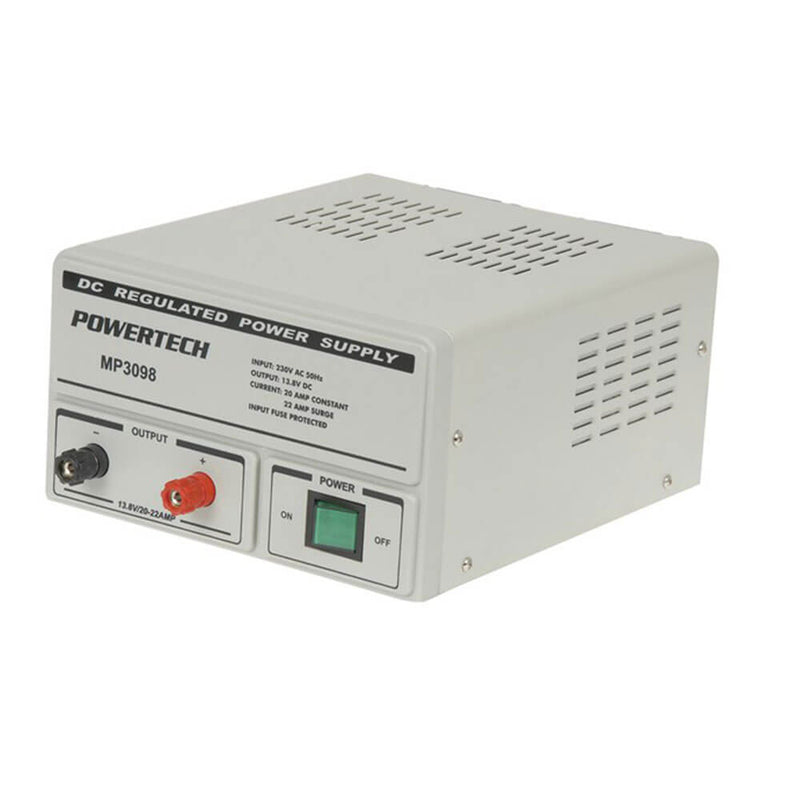

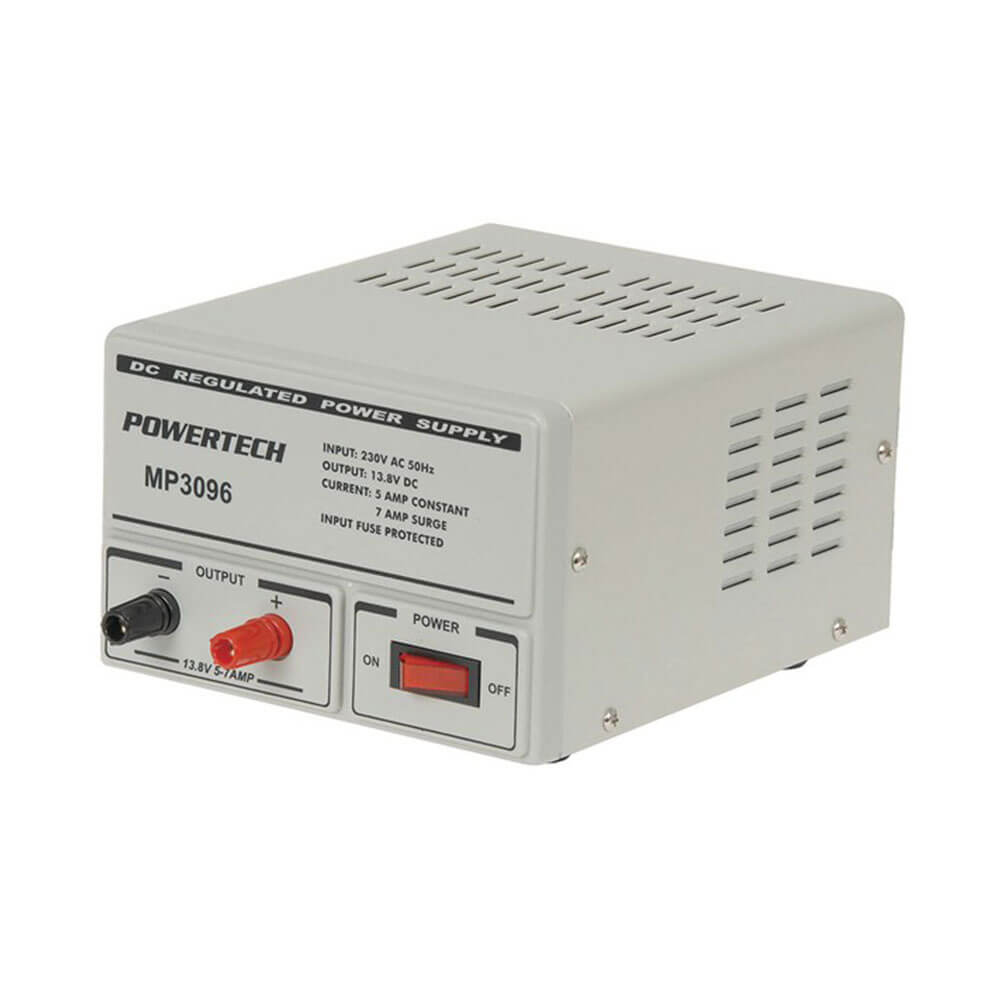

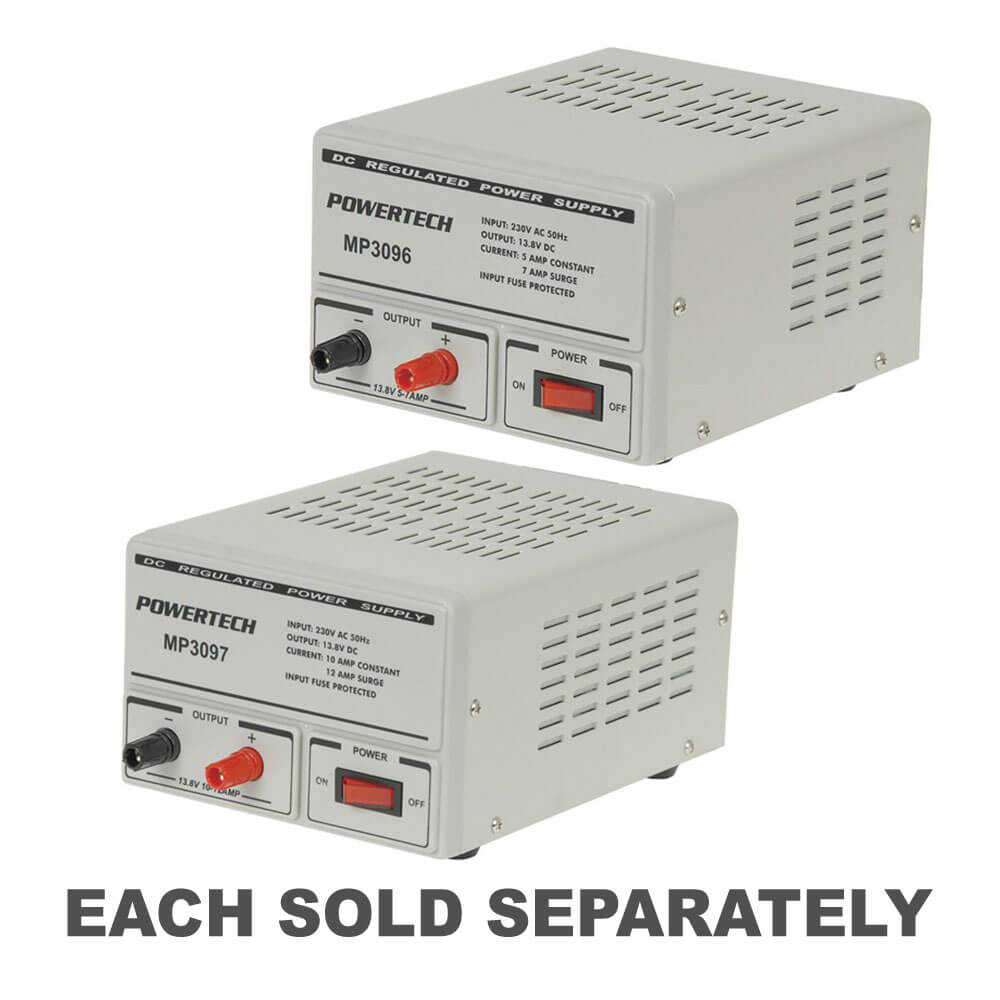

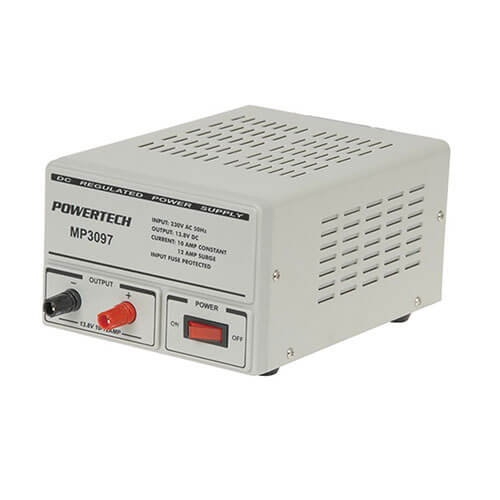

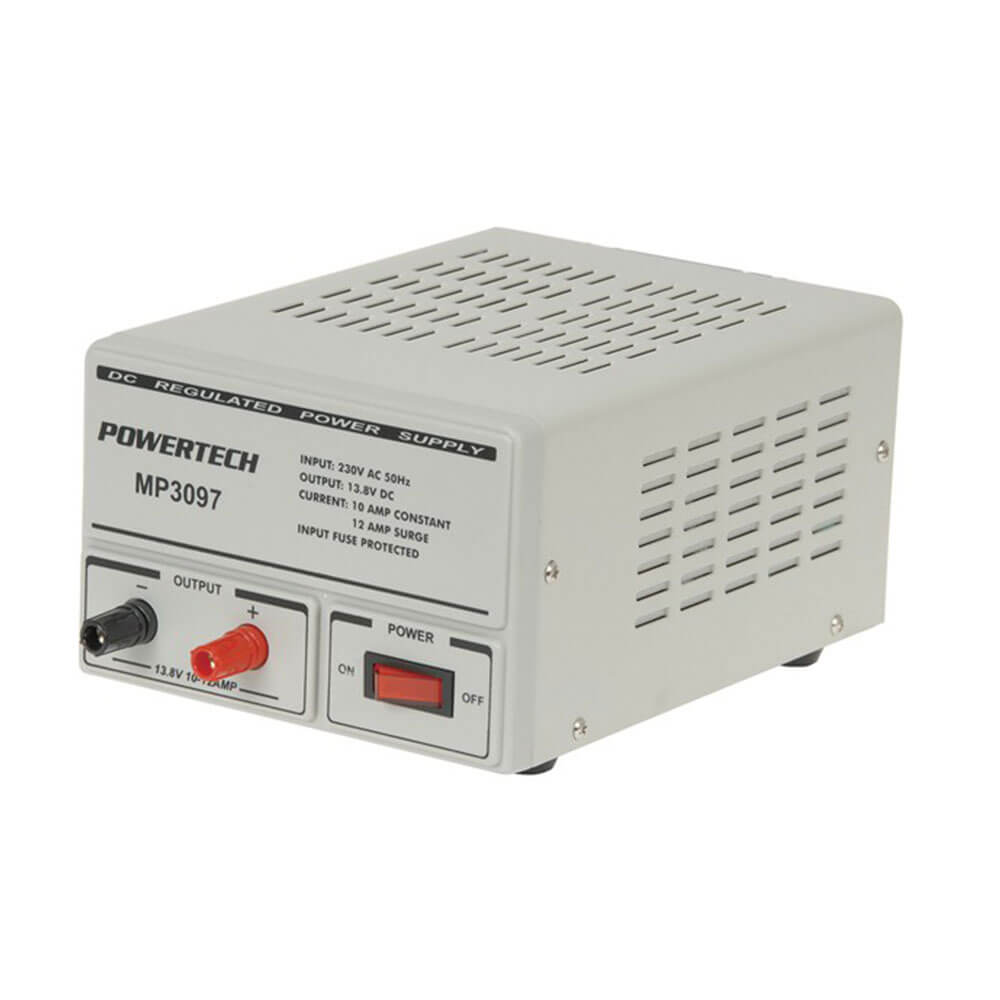

We have been looking for a cost effective range of 13.8VDC bench/Lab power supplies for some time and are happy that we have finally found them. These good looking power supplies are available in four current capacities of 5 amp, 10 amp, 20 amp, and 30 amp. They use proven technology and are designed to give long service life in workshop situations. The range features short circuit protection on the output and a fused input. Voltage regulation: <5%
Product Specifications
- AC Voltage rating : 240.0V
- AC Frequency : 50.0Hz
- DC current rating : 5.0A
- DC Current Surge Rating : 7.0A
- DC Voltage : 13.8V
- Width : 130.0mm
- Height : 160.0mm
- Depth : 320.0mm
- Mains Voltage Range : 220.0V, 240.0V
- Frequency : 50.0Hz
- Rated for AU Mains : true
- Rated for US Mains : false
- Type of Power Supply : Laboratory
- Regulation Type : Regulated
- Voltage Display : false
- Current Display : false
- Output Connection : Banana 4mm (standard), Binding Post Terminals
- Number of Outputs : 1.0pc
- Ripple Voltage : 100.0MV
- Length : 28.2 cm
- Width : 17.2 cm
- Height : 12.2 cm
