Mini UHF Log Periodic Element Antenna

On back order
LatestBuySKU: 51586

    • Mounting Method : Pole Mount
    • Attachment / Securing Method : U-Bolt
    • Antenna Type : Log Periodic
    • Usage Location : Outdoor
    • Number of elements : 20.0pc
    • Reception Bands : TV Band 4: 526-582MHz, TV Band 5: 582-694MHz
    • UHF Frequency Range : 470.0MHz, 862.0MHz
    • UHF Channel Range : 21.0ch, 69.0ch
    • UHF Gain : 7.5dB
    • Antenna Assembly : Bolt Together

Price:
Sale price$83.00 USD
Stock:
Sold out

Description

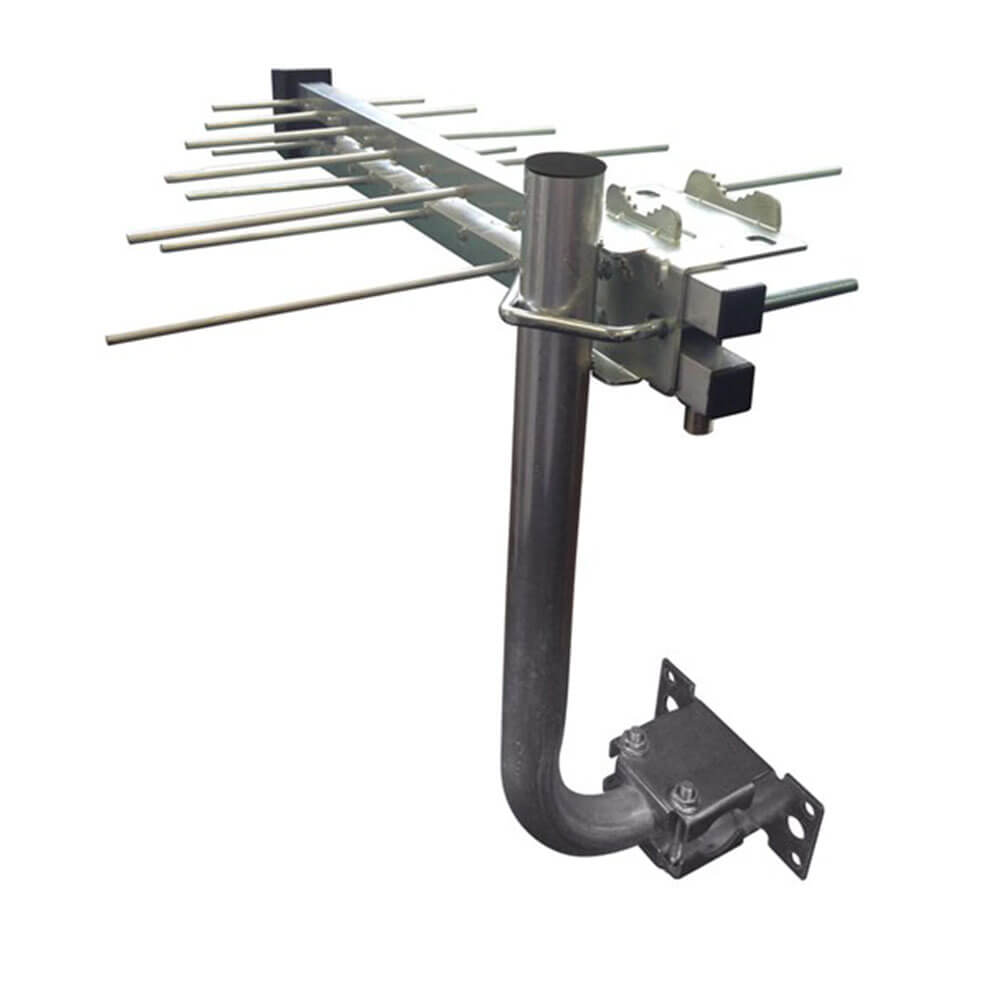

This UHF mini log periodic antenna has been specifically designed for Digital TV reception. It is supplied with an easy to install mounting bracket and “J”; mast. Compact in size the antenna is capable of being installed vertically or horizontally and with 7.5dB of gain is the ideal reception solution for areas with medium levels of signal.

Specifications:

  • Element: 20
  • Band: 4-5
  • Channels: 21-69
  • Frequency: 470-862MHz
  • Gain: 7.5dB
  • F/B Ratio: 21dB
  • Overall Length: 400mm
  • Maximum Width: 311mm

Product Specifications

  • Mounting Method : Pole Mount
  • Attachment / Securing Method : U-Bolt
  • Antenna Type : Log Periodic
  • Usage Location : Outdoor
  • Number of elements : 20.0pc
  • Reception Bands : TV Band 4: 526-582MHz, TV Band 5: 582-694MHz
  • UHF Frequency Range : 470.0MHz, 862.0MHz
  • UHF Channel Range : 21.0ch, 69.0ch
  • UHF Gain : 7.5dB
  • Antenna Assembly : Bolt Together
  • Length : 39 cm
  • Width : 30 cm
  • Height : 7 cm
